IDProjectCategoryView StatusDate SubmittedLast Update
0001661T99X171.00 SKB EaglexTS certificationpublic2023-02-21 14:232025-04-07 10:08
Reporter(SW) Jason LingAssigned To(SW) Jason LingDue Date
PrioritynormalSeveritys4-minorReproducibilityalways
Status closedResolutionfixed

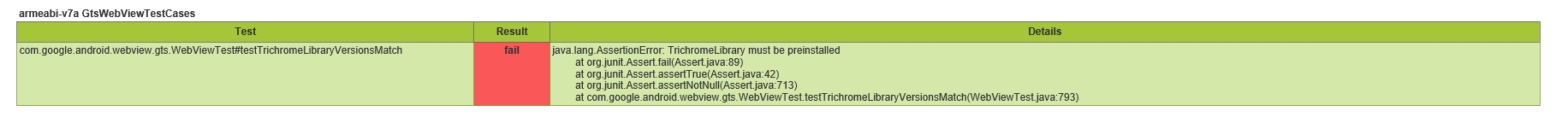

Summary0001661: [Smart3][ATV12] testTrichromeLibraryVersionsMatch
DescriptionHi YK,

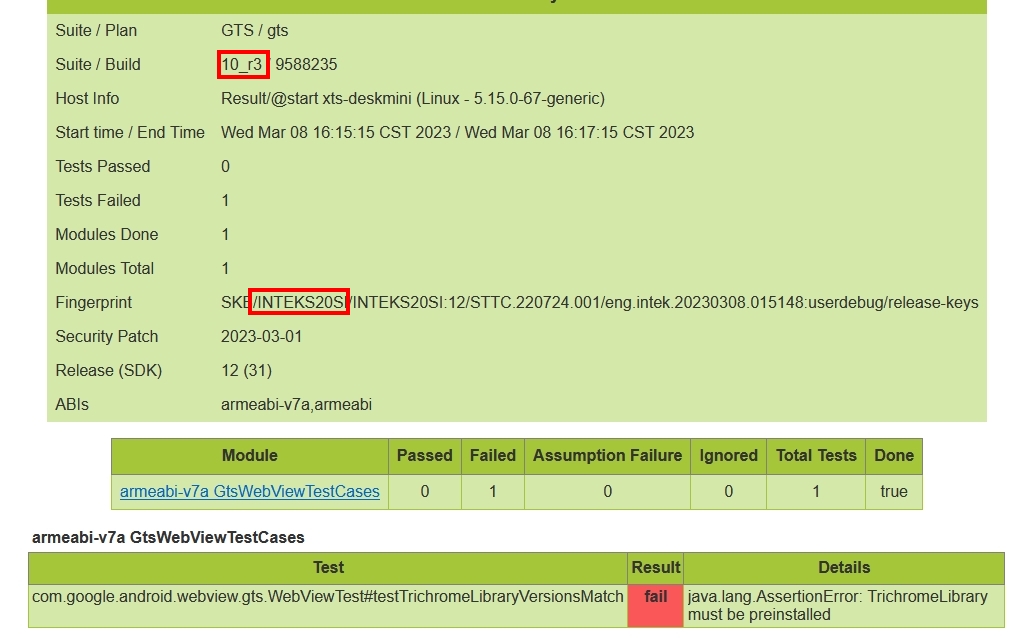

We have new GTS failures in GTS 10_R3 (new tool)

Test Tool: GTS 10_R3
GTS 10_R2 doesn't have this item

test command: run gts -m GtsWebViewTestCases -t com.google.android.webview.gts.WebViewTest#testTrichromeLibraryVersionsMatch

This items will check
1. if TrichromeLibrary is prebuilt
2. if TrichromeLibrary version match webview version

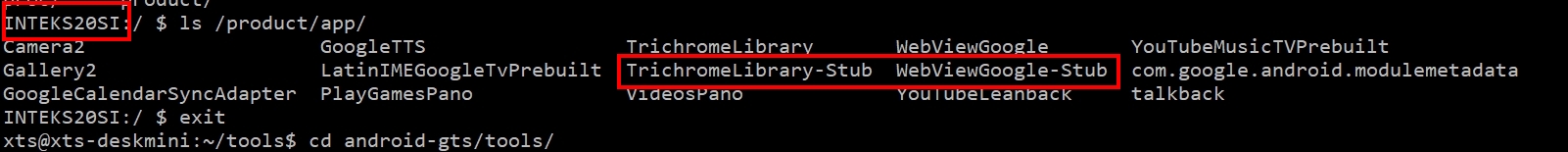

For the 1st condition, compressed TrichromeLibrary can not be used.

For the 2nd condition, if we use compressed Webview (WebView-stub.apk) + original TrichromeLibrary, it will also fail,
the compressed Webview.apk (WebView-stub.apk) is provided by Google, the version of WebView-stub.apk is not match with original TrichromeLibrary.apk (uncompressed)
we can NOT modified the version of WebView-stub.apk. (It's binary provided by Google)

Therefore, we should use original TrichromeLibrary/Webview
All OEMs will encounter the space issue again

Thanks,
Jason


TagsNo tags attached.
Attach Tags

Users monitoring this issue

User List (ALTech) JunGyu Kim , (SW) Kerwin Chen , (SW) Sam Yang

Activities

(SW) Jason Ling

2023-02-21 14:53

developer   ~0012278

(ALTech) Younkwang Jung

2023-02-22 08:32

developer   ~0012299

Hi Jason

In the case of INTEK, there was a space issue in the ATV12 beginning, but there is no space issue now.

In the case of INNOPIA, there was a space issue, but he talked to 3PL and removed apk that had no issue on Google test.
SKB manager is saying that INNOPIA has no problem right now.

Approximately how much extra space do FXN STB need to get if you revert the current compressed part?

Thank you
YK.Jung

(ALTech) Younkwang Jung

2023-02-22 11:53

developer   ~0012306

Hi Jason

For INTEK, the dynamic partition maximum size is basically 9M larger than FXN.
First of all, I attach the dynamic_partitions_op_list of each manufacturer.
Please check it .

Thank you
YK.Jung
INTEK_v15.537.12_SU_dynamic_partitions_op_list (859 bytes)
# Remove all existing dynamic partitions and groups before applying full OTA
remove_all_groups
# Add group amlogic_dynamic_partitions with maximum size 1695547392
add_group amlogic_dynamic_partitions 1695547392
# Add partition system to group amlogic_dynamic_partitions
add system amlogic_dynamic_partitions
# Add partition vendor to group amlogic_dynamic_partitions
add vendor amlogic_dynamic_partitions
# Add partition product to group amlogic_dynamic_partitions
add product amlogic_dynamic_partitions
# Add partition odm to group amlogic_dynamic_partitions
add odm amlogic_dynamic_partitions
# Grow partition system from 0 to 878530560
resize system 878530560
# Grow partition vendor from 0 to 211771392
resize vendor 211771392
# Grow partition product from 0 to 574857216
resize product 574857216
# Grow partition odm from 0 to 3321856
resize odm 3321856
INNPIOA_v15.537.12_SU_dynamic_partitions_op_list (859 bytes)
# Remove all existing dynamic partitions and groups before applying full OTA
remove_all_groups
# Add group amlogic_dynamic_partitions with maximum size 1688207360
add_group amlogic_dynamic_partitions 1688207360
# Add partition system to group amlogic_dynamic_partitions
add system amlogic_dynamic_partitions
# Add partition vendor to group amlogic_dynamic_partitions
add vendor amlogic_dynamic_partitions
# Add partition product to group amlogic_dynamic_partitions
add product amlogic_dynamic_partitions
# Add partition odm to group amlogic_dynamic_partitions
add odm amlogic_dynamic_partitions
# Grow partition system from 0 to 869883904
resize system 869883904
# Grow partition vendor from 0 to 209944576
resize vendor 209944576
# Grow partition product from 0 to 584847360
resize product 584847360
# Grow partition odm from 0 to 3309568
resize odm 3309568
FXN_v15.537.12_SU_dynamic_partitions_op_list (859 bytes)
# Remove all existing dynamic partitions and groups before applying full OTA
remove_all_groups
# Add group amlogic_dynamic_partitions with maximum size 1686110208
add_group amlogic_dynamic_partitions 1686110208
# Add partition system to group amlogic_dynamic_partitions
add system amlogic_dynamic_partitions
# Add partition vendor to group amlogic_dynamic_partitions
add vendor amlogic_dynamic_partitions
# Add partition product to group amlogic_dynamic_partitions
add product amlogic_dynamic_partitions
# Add partition odm to group amlogic_dynamic_partitions
add odm amlogic_dynamic_partitions
# Grow partition system from 0 to 894701568
resize system 894701568
# Grow partition vendor from 0 to 214331392
resize vendor 214331392
# Grow partition product from 0 to 543043584
resize product 543043584
# Grow partition odm from 0 to 3006464
resize odm 3006464

(ALTech) Younkwang Jung

2023-02-23 09:29

developer   ~0012325

Hi Jason

I compared INTEK and FXN STB files at v15.537.14 FW

INTEK's STB did not include the app below.
20M ./product/product/priv-app/LiveTv

Please check if you can delete it.

Thank you
YK.Jung
size _INTEK.txt (9,276 bytes)
4.4M	./product/product/app/Camera2
28K	./product/product/app/com.google.android.modulemetadata
4.9M	./product/product/app/Gallery2
2.4M	./product/product/app/GoogleCalendarSyncAdapter
45M	./product/product/app/GoogleTTS
20M	./product/product/app/LatinIMEGoogleTvPrebuilt
17M	./product/product/app/PlayGamesPano
27M	./product/product/app/talkback
45M	./product/product/app/TrichromeLibrary
20K	./product/product/app/TrichromeLibrary-Stub
18M	./product/product/app/VideosPano
5.0M	./product/product/app/WebViewGoogle
764K	./product/product/app/WebViewGoogle-Stub
46M	./product/product/app/YouTubeLeanback
696K	./product/product/app/YouTubeMusicTVPrebuilt
233M	./product/product/app
4.0K	./product/product/etc/default-permissions
52K	./product/product/etc/permissions
8.0K	./product/product/etc/security
20K	./product/product/etc/selinux
28K	./product/product/etc/sysconfig
164K	./product/product/etc
736K	./product/product/lib
0	./product/product/lost+found
9.0M	./product/product/media/audio
9.0M	./product/product/media
356K	./product/product/overlay
89M	./product/product/priv-app/AndroidMediaShell
3.7M	./product/product/priv-app/AtvRemoteService
5.4M	./product/product/priv-app/Backdrop
184K	./product/product/priv-app/GoogleOneTimeInitializer
45M	./product/product/priv-app/Katniss
67M	./product/product/priv-app/PrebuiltGmsCorePano
38M	./product/product/priv-app/SetupWraithPrebuilt
46M	./product/product/priv-app/Tubesky
6.5M	./product/product/priv-app/TVRecommendations
300M	./product/product/priv-app
4.0K	./product/product/usr/idc
16K	./product/product/usr/keychars
4.0K	./product/product/usr/keylayout
24K	./product/product/usr
542M	./product/product
542M	./product
4.5M	./system/system/apex/com.android.adbd
3.7M	./system/system/apex/com.android.appsearch
30M	./system/system/apex/com.android.art
2.2M	./system/system/apex/com.android.conscrypt
4.6M	./system/system/apex/com.android.extservices.gms
31M	./system/system/apex/com.android.i18n
572K	./system/system/apex/com.android.ipsec
4.2M	./system/system/apex/com.android.media
16M	./system/system/apex/com.android.media.swcodec
2.9M	./system/system/apex/com.android.mediaprovider
3.4M	./system/system/apex/com.android.neuralnetworks
1012K	./system/system/apex/com.android.os.statsd
13M	./system/system/apex/com.android.permission.gms
1.8M	./system/system/apex/com.android.resolv
5.9M	./system/system/apex/com.android.runtime
104K	./system/system/apex/com.android.scheduling
412K	./system/system/apex/com.android.sdkext
2.0M	./system/system/apex/com.android.tethering.inprocess
764K	./system/system/apex/com.android.tzdata
17M	./system/system/apex/com.android.vndk.current
4.9M	./system/system/apex/com.android.wifi
148M	./system/system/apex
2.1M	./system/system/app/anypoint
576K	./system/system/app/AudioMirrorService
60K	./system/system/app/BasicDreams
7.5M	./system/system/app/Bluetooth
844K	./system/system/app/btvbtservices
1.6M	./system/system/app/BtvFrameworkService
320K	./system/system/app/btvlogsystem
3.0M	./system/system/app/BtvMsgBroker
1.1M	./system/system/app/BTV_IME
168K	./system/system/app/CertInstaller
64K	./system/system/app/CompanionDeviceManager
8.0K	./system/system/app/CtsShimPrebuilt
476K	./system/system/app/DeviceControlService
4.6M	./system/system/app/GoogleAD
20K	./system/system/app/GoogleExtShared
1.7M	./system/system/app/hlsplayer
40K	./system/system/app/HTMLViewer
120K	./system/system/app/IntekServiceSupporter
1.8M	./system/system/app/itk-atv-setup-custom
2.8M	./system/system/app/KeyChain
1016K	./system/system/app/mdns-processmanager
60K	./system/system/app/mediaProcessorDemo
3.4M	./system/system/app/memory_monitor
9.5M	./system/system/app/msp-agent
1.3M	./system/system/app/nativeplayer
3.0M	./system/system/app/NavigatorService
16M	./system/system/app/nugu
2.0M	./system/system/app/nugu_updater
36K	./system/system/app/PacProcessor
292K	./system/system/app/PlatformCaptivePortalLogin
16K	./system/system/app/PlayAutoInstallConfig
28K	./system/system/app/PlayAutoInstallConfig-INTEK
652K	./system/system/app/PrintSpooler
1.6M	./system/system/app/PushAgentService
4.7M	./system/system/app/Quickset
180K	./system/system/app/SecureElement
15M	./system/system/app/SKB_F_STB_Home_UI5.0_intek
36K	./system/system/app/SKB_IME
6.0M	./system/system/app/SKB_STB_Patch_UI5.0
76M	./system/system/app/skb_TrichromeLibrary
12M	./system/system/app/skb_WebViewGoogle
61M	./system/system/app/SKB_ZemKids_SMART3_intek
912K	./system/system/app/SmartRCUAgent
1.1M	./system/system/app/UpgradeService
64K	./system/system/app/WallpaperBackup
243M	./system/system/app
3.4M	./system/system/bin/bootstrap
100K	./system/system/bin/hw
109M	./system/system/bin
8.0K	./system/system/etc/bluetooth
48K	./system/system/etc/bpf
0	./system/system/etc/classpaths
44K	./system/system/etc/compatconfig
184K	./system/system/etc/init
152K	./system/system/etc/permissions
8.0K	./system/system/etc/ppp
8.0K	./system/system/etc/seccomp_policy
960K	./system/system/etc/security
2.7M	./system/system/etc/selinux
20K	./system/system/etc/sysconfig
12K	./system/system/etc/task_profiles
464K	./system/system/etc/vintf
6.0M	./system/system/etc
60M	./system/system/fonts
14M	./system/system/framework/arm
37M	./system/system/framework/oat
118M	./system/system/framework
972K	./system/system/lib/bootstrap
16K	./system/system/lib/extractors
1.4M	./system/system/lib/hw
138M	./system/system/lib
5.1M	./system/system/media
48K	./system/system/priv-app/BackupRestoreConfirmation
508K	./system/system/priv-app/CalendarProvider
860K	./system/system/priv-app/ContactsProvider
32K	./system/system/priv-app/CtsShimPrivPrebuilt
452K	./system/system/priv-app/DownloadProvider
76K	./system/system/priv-app/DynamicSystemInstallationService
60K	./system/system/priv-app/ExternalStorageProvider
44K	./system/system/priv-app/FusedLocation
3.2M	./system/system/priv-app/GooglePackageInstaller
1016K	./system/system/priv-app/InProcessNetworkStack
116K	./system/system/priv-app/InputDevices
7.1M	./system/system/priv-app/LeanbackCustomizer
48K	./system/system/priv-app/LocalTransport
4.7M	./system/system/priv-app/ManagedProvisioning
1.6M	./system/system/priv-app/MediaProviderLegacy
1.4M	./system/system/priv-app/MtpService
32K	./system/system/priv-app/PlatformNetworkPermissionConfig
44K	./system/system/priv-app/ProxyHandler
724K	./system/system/priv-app/SettingsProvider
40K	./system/system/priv-app/SharedStorageBackup
268K	./system/system/priv-app/Shell
1.3M	./system/system/priv-app/SoundPicker
2.0M	./system/system/priv-app/StatementService
116K	./system/system/priv-app/TvProvider
48K	./system/system/priv-app/UserDictionaryProvider
52K	./system/system/priv-app/VpnDialogs
26M	./system/system/priv-app
233M	./system/system/product/app
164K	./system/system/product/etc
736K	./system/system/product/lib
0	./system/system/product/lost+found
9.0M	./system/system/product/media
356K	./system/system/product/overlay
300M	./system/system/product/priv-app
24K	./system/system/product/usr
542M	./system/system/product
72K	./system/system/system_ext/app
548K	./system/system/system_ext/bin
44K	./system/system/system_ext/etc
19M	./system/system/system_ext/lib
34M	./system/system/system_ext/priv-app
53M	./system/system/system_ext
1.5M	./system/system/usr/hyphen-data
25M	./system/system/usr/icu
24K	./system/system/usr/idc
80K	./system/system/usr/keychars
684K	./system/system/usr/keylayout
520K	./system/system/usr/share
50M	./system/system/usr/skb
78M	./system/system/usr
33M	./system/system/vendor/app
71M	./system/system/vendor/bin
28M	./system/system/vendor/etc
48K	./system/system/vendor/firmware
544K	./system/system/vendor/framework
137M	./system/system/vendor/lib
0	./system/system/vendor/lost+found
3.1M	./system/system/vendor/odm
4.0K	./system/system/vendor/odm_dlkm
12K	./system/system/vendor/overlay
56K	./system/system/vendor/usr
4.0K	./system/system/vendor/vendor_dlkm
68K	./system/system/vendor/xbin
282M	./system/system/vendor
8.0K	./system/system/xbin
1.8G	./system/system
1.8G	./system
33M	./vendor/vendor/app/apple_tvplus
33M	./vendor/vendor/app
5.1M	./vendor/vendor/bin/hw
71M	./vendor/vendor/bin
4.0K	./vendor/vendor/etc/bluetooth
4.0K	./vendor/vendor/etc/default-permissions
132K	./vendor/vendor/etc/firmware
23M	./vendor/vendor/etc/icu
76K	./vendor/vendor/etc/init
96K	./vendor/vendor/etc/permissions
0	./vendor/vendor/etc/seccomp_policy
1.6M	./vendor/vendor/etc/selinux
4.0K	./vendor/vendor/etc/skb
24K	./vendor/vendor/etc/vintf
0	./vendor/vendor/etc/wifi
28M	./vendor/vendor/etc
48K	./vendor/vendor/firmware
32K	./vendor/vendor/framework/oat
544K	./vendor/vendor/framework
13M	./vendor/vendor/lib/egl
2.0M	./vendor/vendor/lib/firmware
16M	./vendor/vendor/lib/hw
604K	./vendor/vendor/lib/mediacas
40K	./vendor/vendor/lib/mediadrm
8.0M	./vendor/vendor/lib/modules
1.2M	./vendor/vendor/lib/soundfx
2.9M	./vendor/vendor/lib/teetz
137M	./vendor/vendor/lib
0	./vendor/vendor/lost+found
2.1M	./vendor/vendor/odm/etc
1012K	./vendor/vendor/odm/lib
0	./vendor/vendor/odm/lost+found
3.1M	./vendor/vendor/odm
4.0K	./vendor/vendor/odm_dlkm/etc
4.0K	./vendor/vendor/odm_dlkm
12K	./vendor/vendor/overlay
4.0K	./vendor/vendor/usr/idc
52K	./vendor/vendor/usr/keylayout
56K	./vendor/vendor/usr
4.0K	./vendor/vendor/vendor_dlkm/etc
4.0K	./vendor/vendor/vendor_dlkm
68K	./vendor/vendor/xbin
282M	./vendor/vendor
282M	./vendor
2.6G	.
size _INTEK.txt (9,276 bytes)
size_FXN.txt (8,917 bytes)
28K	./product/product/app/com.google.android.modulemetadata
2.4M	./product/product/app/GoogleCalendarSyncAdapter
45M	./product/product/app/GoogleTTS
17M	./product/product/app/PlayGamesPano
27M	./product/product/app/talkback
45M	./product/product/app/TrichromeLibrary
20K	./product/product/app/TrichromeLibrary-Stub
18M	./product/product/app/VideosPano
5.0M	./product/product/app/WebViewGoogle
764K	./product/product/app/WebViewGoogle-Stub
46M	./product/product/app/YouTubeLeanback
696K	./product/product/app/YouTubeMusicTVPrebuilt
204M	./product/product/app
4.0K	./product/product/etc/default-permissions
56K	./product/product/etc/permissions
8.0K	./product/product/etc/security
20K	./product/product/etc/selinux
28K	./product/product/etc/sysconfig
168K	./product/product/etc
0	./product/product/lost+found
9.0M	./product/product/media/audio
9.0M	./product/product/media
376K	./product/product/overlay
76M	./product/product/priv-app/AndroidMediaShell
2.4M	./product/product/priv-app/AtvRemoteService
5.4M	./product/product/priv-app/Backdrop
184K	./product/product/priv-app/GoogleOneTimeInitializer
45M	./product/product/priv-app/Katniss
20M	./product/product/priv-app/LiveTv
65M	./product/product/priv-app/PrebuiltGmsCorePano
38M	./product/product/priv-app/SetupWraithPrebuilt
46M	./product/product/priv-app/Tubesky
6.4M	./product/product/priv-app/TVRecommendations
302M	./product/product/priv-app
4.0K	./product/product/usr/idc
16K	./product/product/usr/keychars
4.0K	./product/product/usr/keylayout
24K	./product/product/usr
515M	./product/product
515M	./product
4.5M	./system/system/apex/com.android.adbd
3.7M	./system/system/apex/com.android.appsearch
30M	./system/system/apex/com.android.art
2.2M	./system/system/apex/com.android.conscrypt
4.6M	./system/system/apex/com.android.extservices.gms
31M	./system/system/apex/com.android.i18n
572K	./system/system/apex/com.android.ipsec
4.2M	./system/system/apex/com.android.media
16M	./system/system/apex/com.android.media.swcodec
2.9M	./system/system/apex/com.android.mediaprovider
3.4M	./system/system/apex/com.android.neuralnetworks
1008K	./system/system/apex/com.android.os.statsd
13M	./system/system/apex/com.android.permission.gms
1.8M	./system/system/apex/com.android.resolv
5.9M	./system/system/apex/com.android.runtime
104K	./system/system/apex/com.android.scheduling
404K	./system/system/apex/com.android.sdkext
2.0M	./system/system/apex/com.android.tethering.inprocess
764K	./system/system/apex/com.android.tzdata
17M	./system/system/apex/com.android.vndk.current
4.9M	./system/system/apex/com.android.wifi
148M	./system/system/apex
2.1M	./system/system/app/anypoint
4.5M	./system/system/app/AttDaemon
576K	./system/system/app/AudioMirrorService
60K	./system/system/app/BasicDreams
7.5M	./system/system/app/Bluetooth
844K	./system/system/app/btvbtservices
1.6M	./system/system/app/BtvFrameworkService
320K	./system/system/app/btvlogsystem
3.0M	./system/system/app/BtvMsgBroker
1.1M	./system/system/app/BTV_IME
164K	./system/system/app/CertInstaller
64K	./system/system/app/CompanionDeviceManager
8.0K	./system/system/app/CtsShimPrebuilt
476K	./system/system/app/DeviceControlService
4.6M	./system/system/app/GoogleAD
20K	./system/system/app/GoogleExtShared
1.7M	./system/system/app/hlsplayer
40K	./system/system/app/HTMLViewer
2.8M	./system/system/app/KeyChain
1016K	./system/system/app/mdns-processmanager
60K	./system/system/app/mediaProcessorDemo
9.5M	./system/system/app/msp-agent
1.3M	./system/system/app/nativeplayer
3.0M	./system/system/app/NavigatorService
16M	./system/system/app/nugu
2.0M	./system/system/app/nugu_updater
36K	./system/system/app/PacProcessor
292K	./system/system/app/PlatformCaptivePortalLogin
12K	./system/system/app/PlayAutoInstallStub
652K	./system/system/app/PrintSpooler
1.6M	./system/system/app/PushAgentService
4.7M	./system/system/app/Quickset
180K	./system/system/app/SecureElement
15M	./system/system/app/SKB_F_STB_Home_UI5.0_alt
36K	./system/system/app/SKB_IME
6.0M	./system/system/app/SKB_STB_Patch_UI5.0
76M	./system/system/app/skb_TrichromeLibrary
12M	./system/system/app/skb_WebViewGoogle
46M	./system/system/app/SKB_ZemKids_SMART3_foxconn
12K	./system/system/app/SKB_ZemKids_SMART3_foxconn-Stub
912K	./system/system/app/SmartRCUAgent
1.1M	./system/system/app/UpgradeService
64K	./system/system/app/WallpaperBackup
32M	./system/system/app/YouTubeKidsTv
259M	./system/system/app
3.4M	./system/system/bin/bootstrap
100K	./system/system/bin/hw
109M	./system/system/bin
8.0K	./system/system/etc/bluetooth
48K	./system/system/etc/bpf
0	./system/system/etc/classpaths
44K	./system/system/etc/compatconfig
184K	./system/system/etc/init
144K	./system/system/etc/permissions
8.0K	./system/system/etc/ppp
8.0K	./system/system/etc/seccomp_policy
960K	./system/system/etc/security
2.7M	./system/system/etc/selinux
20K	./system/system/etc/sysconfig
12K	./system/system/etc/task_profiles
464K	./system/system/etc/vintf
6.0M	./system/system/etc
60M	./system/system/fonts
14M	./system/system/framework/arm
37M	./system/system/framework/oat
118M	./system/system/framework
968K	./system/system/lib/bootstrap
16K	./system/system/lib/extractors
1.4M	./system/system/lib/hw
138M	./system/system/lib
5.1M	./system/system/media
48K	./system/system/priv-app/BackupRestoreConfirmation
508K	./system/system/priv-app/CalendarProvider
860K	./system/system/priv-app/ContactsProvider
32K	./system/system/priv-app/CtsShimPrivPrebuilt
452K	./system/system/priv-app/DownloadProvider
76K	./system/system/priv-app/DynamicSystemInstallationService
60K	./system/system/priv-app/ExternalStorageProvider
44K	./system/system/priv-app/FusedLocation
3.2M	./system/system/priv-app/GooglePackageInstaller
1.0M	./system/system/priv-app/InProcessNetworkStack
116K	./system/system/priv-app/InputDevices
2.7M	./system/system/priv-app/LeanbackCustomizer
48K	./system/system/priv-app/LocalTransport
4.7M	./system/system/priv-app/ManagedProvisioning
1.6M	./system/system/priv-app/MediaProviderLegacy
1.4M	./system/system/priv-app/MtpService
32K	./system/system/priv-app/PlatformNetworkPermissionConfig
44K	./system/system/priv-app/ProxyHandler
724K	./system/system/priv-app/SettingsProvider
40K	./system/system/priv-app/SharedStorageBackup
268K	./system/system/priv-app/Shell
1.3M	./system/system/priv-app/SoundPicker
2.0M	./system/system/priv-app/StatementService
116K	./system/system/priv-app/TvProvider
48K	./system/system/priv-app/UserDictionaryProvider
52K	./system/system/priv-app/VpnDialogs
22M	./system/system/priv-app
204M	./system/system/product/app
168K	./system/system/product/etc
0	./system/system/product/lost+found
9.0M	./system/system/product/media
376K	./system/system/product/overlay
302M	./system/system/product/priv-app
24K	./system/system/product/usr
515M	./system/system/product
72K	./system/system/system_ext/app
656K	./system/system/system_ext/bin
44K	./system/system/system_ext/etc
20M	./system/system/system_ext/lib
34M	./system/system/system_ext/priv-app
54M	./system/system/system_ext
1.5M	./system/system/usr/hyphen-data
25M	./system/system/usr/icu
24K	./system/system/usr/idc
80K	./system/system/usr/keychars
684K	./system/system/usr/keylayout
520K	./system/system/usr/share
50M	./system/system/usr/skb
78M	./system/system/usr
33M	./system/system/vendor/app
71M	./system/system/vendor/bin
26M	./system/system/vendor/etc
1.1M	./system/system/vendor/framework
140M	./system/system/vendor/lib
0	./system/system/vendor/lost+found
2.9M	./system/system/vendor/odm
4.0K	./system/system/vendor/odm_dlkm
12K	./system/system/vendor/overlay
172K	./system/system/vendor/usr
4.0K	./system/system/vendor/vendor_dlkm
68K	./system/system/vendor/xbin
284M	./system/system/vendor
8.0K	./system/system/xbin
1.8G	./system/system
1.8G	./system
33M	./vendor/app/apple_tvplus
32K	./vendor/app/BLE_Helper
33M	./vendor/app
5.1M	./vendor/bin/hw
71M	./vendor/bin
892K	./vendor/etc/bluetooth
4.0K	./vendor/etc/default-permissions
23M	./vendor/etc/icu
24K	./vendor/etc/init/hw
80K	./vendor/etc/init
100K	./vendor/etc/permissions
0	./vendor/etc/seccomp_policy
1.6M	./vendor/etc/selinux
4.0K	./vendor/etc/skb
12K	./vendor/etc/vintf/manifest
20K	./vendor/etc/vintf
0	./vendor/etc/wifi
26M	./vendor/etc
56K	./vendor/framework/oat/arm
56K	./vendor/framework/oat
1.1M	./vendor/framework
13M	./vendor/lib/egl
2.0M	./vendor/lib/firmware/video
2.0M	./vendor/lib/firmware
15M	./vendor/lib/hw
604K	./vendor/lib/mediacas
40K	./vendor/lib/mediadrm
8.0M	./vendor/lib/modules
1.2M	./vendor/lib/soundfx
2.9M	./vendor/lib/teetz
140M	./vendor/lib
0	./vendor/lost+found
132K	./vendor/odm/etc/firmware
676K	./vendor/odm/etc/selinux
1.3M	./vendor/odm/etc/tvconfig
2.1M	./vendor/odm/etc
724K	./vendor/odm/lib
0	./vendor/odm/lost+found
2.9M	./vendor/odm
4.0K	./vendor/odm_dlkm/etc
4.0K	./vendor/odm_dlkm
12K	./vendor/overlay
4.0K	./vendor/usr/idc
168K	./vendor/usr/keylayout
172K	./vendor/usr
4.0K	./vendor/vendor_dlkm/etc
4.0K	./vendor/vendor_dlkm
68K	./vendor/xbin
284M	./vendor
2.6G	.
size_FXN.txt (8,917 bytes)

(SW) Jason Ling

2023-02-23 09:51

developer   ~0012327

Hi YK,

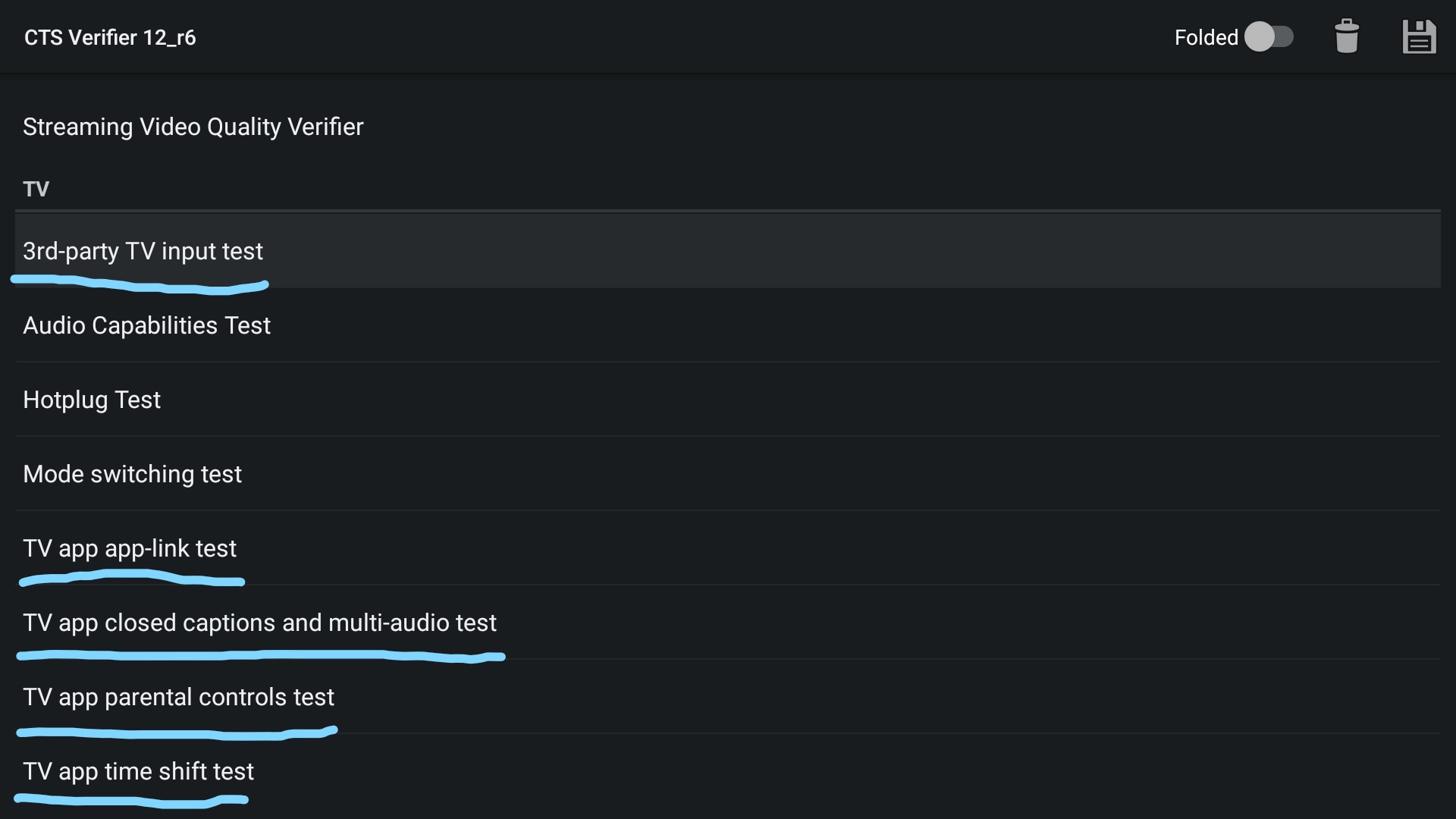

Does Intek test Cts-Verifier TV related items (Please refer to cts-v.jpg)

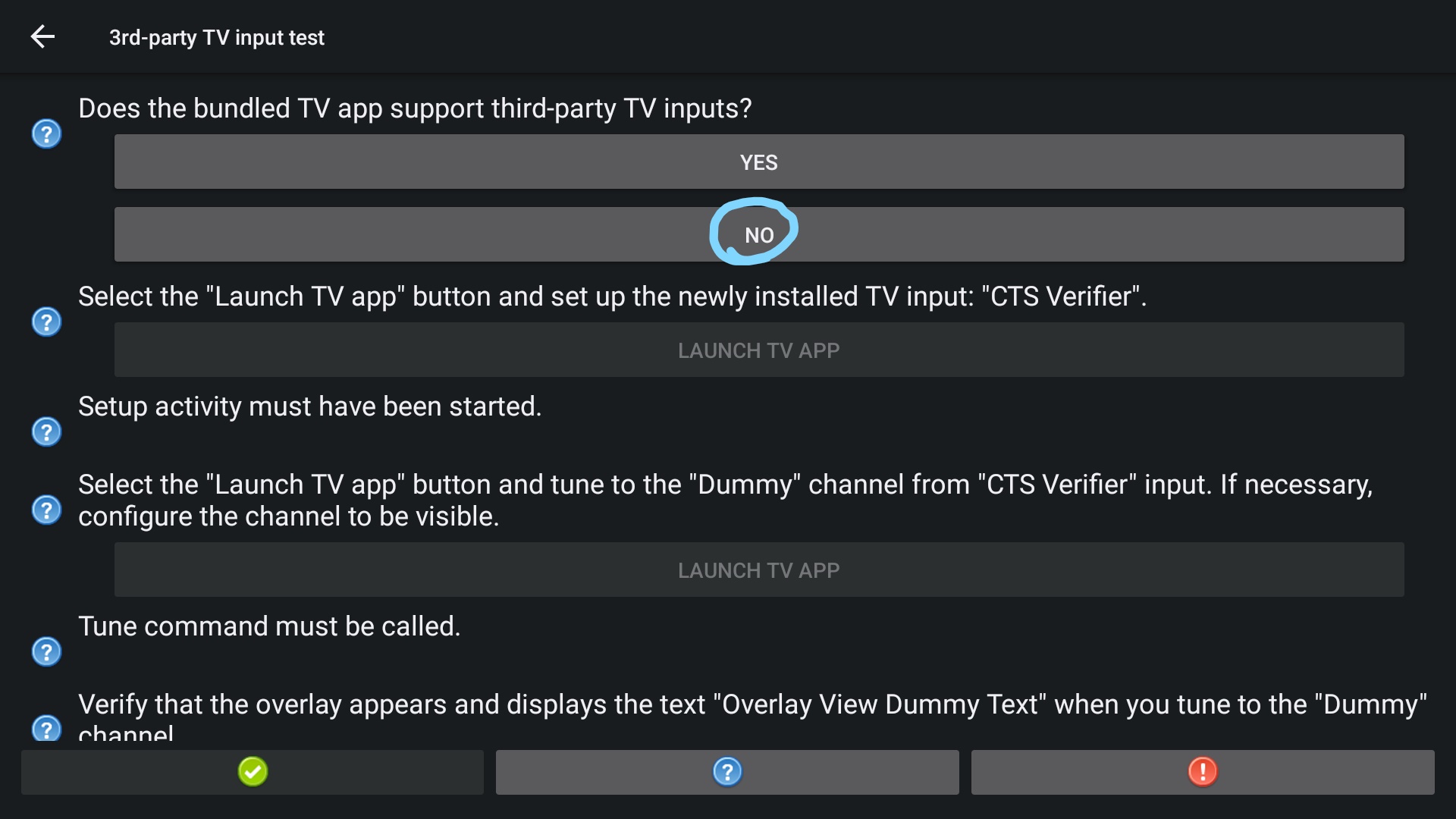

Does Intek select "NO" to skip these items. (Please refer to cts-v-1.jpg)

In ATV9/ATV10, there is a LiveChannel apps in GTVS packages, so we have to test these items,
From ATV12, the LiveChannel apps is remove from GTVS packages, our QA said they can not verify these items, so I add AOSP LiveTV apps into FW, so that they can test it.

Is these item not mandatory?
I'll also check it will my 3PL.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-02-23 10:43

developer   ~0012333

Hi Jason

INTEK manager said that it will not proceed with LiveTv apps, but will take a video of the operation and deliver it to 3PL.

Thank you
YK.Jung

(SW) Jason Ling

2023-02-24 11:10

developer   ~0012361

Hi YK,

Our 3PL said that we don't need to prebuilt LiveTv apps.
We will remove it.

Thanks,
Jason

(SW) Jason Ling

2023-03-08 16:23

developer   ~0012470

Hi YK,

>>In the case of INTEK, there was a space issue in the ATV12 beginning, but there is no space issue now.
Intek has compressed webview and TrichromeLibrary currently.

They will also encounter this GTS issue.

If all manufacturers want to fix this failures, all manufacturers will encounter space issue.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-03-23 18:52

developer   ~0012620

Hi Jason

I heard INTEK and SKB talking during the meeting today
In the case of INTEK now, even though the google files are being compressed, Google Test does not fail.

I don't understand that INNOPIA and FXN are fail, but only INTEK is not fail.

Could you check the above fail item one more time in the latest INTEK FW attached here?
http://altserver02.duckdns.org/release_by_ALT/ATV12_INTEK_FW/15.527.28/

Thank you
YK.Jung

(SW) Jason Ling

2023-03-24 09:44

developer   ~0012626

Hi YK,

I've checked the Intek's FW you provided.

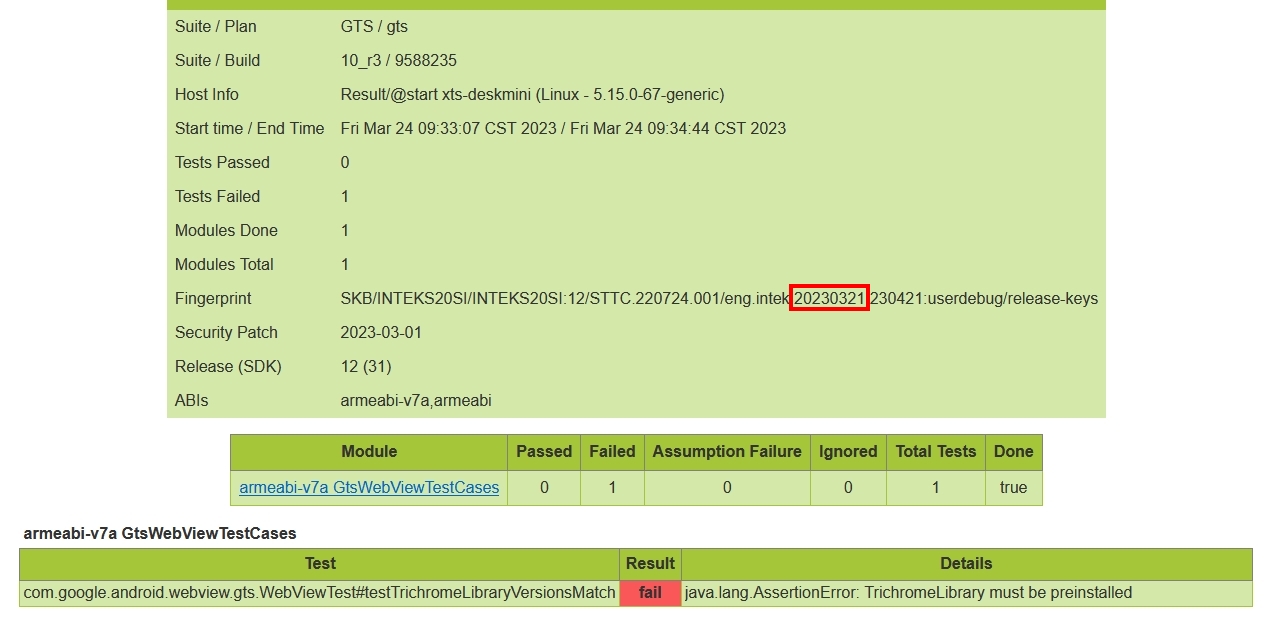

The result is still fail. (Please refert to Intek_20230321.jpg)
Regardless of whether the persist.sys.skb.mode is true or false, the result is fail.

Thanks,
Jason

(ALTech) Younkwang Jung

2024-04-18 12:53

developer   ~0015484

Hi Jason

we use original TrichromeLibrary/Webview at OS12
This ticket needs to be closed

Thank you
YK.Jung

(SW) Kerwin Chen

2025-04-07 10:08

developer   ~0017437

no activity for this issue

Issue History

Date Modified Username Field Change
2023-02-21 14:23 (SW) Jason Ling New Issue
2023-02-21 14:23 (SW) Jason Ling Status new => assigned
2023-02-21 14:23 (SW) Jason Ling Assigned To => (ALTech) Younkwang Jung
2023-02-21 14:24 (SW) Jason Ling Description Updated
2023-02-21 14:24 (SW) Jason Ling Issue Monitored: (SW) Kerwin Chen
2023-02-21 14:24 (SW) Jason Ling Issue Monitored: (SW) Sam Yang
2023-02-21 14:24 (SW) Jason Ling Issue Monitored: (ALTech) JunGyu Kim
2023-02-21 14:53 (SW) Jason Ling Note Added: 0012278
2023-02-21 14:53 (SW) Jason Ling File Added: testTrichromeLibraryVersionsMatch.jpg
2023-02-22 08:32 (ALTech) Younkwang Jung Note Added: 0012299
2023-02-22 11:53 (ALTech) Younkwang Jung Note Added: 0012306
2023-02-22 11:53 (ALTech) Younkwang Jung File Added: INTEK_v15.537.12_SU_dynamic_partitions_op_list
2023-02-22 11:53 (ALTech) Younkwang Jung File Added: INNPIOA_v15.537.12_SU_dynamic_partitions_op_list
2023-02-22 11:53 (ALTech) Younkwang Jung File Added: FXN_v15.537.12_SU_dynamic_partitions_op_list
2023-02-23 09:29 (ALTech) Younkwang Jung Note Added: 0012325
2023-02-23 09:29 (ALTech) Younkwang Jung File Added: image.png
2023-02-23 09:29 (ALTech) Younkwang Jung File Added: size _INTEK.txt
2023-02-23 09:29 (ALTech) Younkwang Jung File Added: size_FXN.txt
2023-02-23 09:51 (SW) Jason Ling Note Added: 0012327
2023-02-23 09:51 (SW) Jason Ling File Added: cts-v.jpg
2023-02-23 09:51 (SW) Jason Ling File Added: cts-v-1.jpg
2023-02-23 10:43 (ALTech) Younkwang Jung Note Added: 0012333
2023-02-24 11:10 (SW) Jason Ling Note Added: 0012361
2023-03-08 16:23 (SW) Jason Ling Note Added: 0012470
2023-03-08 16:23 (SW) Jason Ling File Added: compressed.jpg
2023-03-08 16:23 (SW) Jason Ling File Added: intek_gts.jpg
2023-03-23 18:52 (ALTech) Younkwang Jung Note Added: 0012620
2023-03-24 09:44 (SW) Jason Ling Note Added: 0012626
2023-03-24 09:44 (SW) Jason Ling File Added: Intek_20230321.jpg
2024-04-18 12:53 (ALTech) Younkwang Jung Note Added: 0015484
2024-04-18 12:53 (ALTech) Younkwang Jung Assigned To (ALTech) Younkwang Jung => (SW) Jason Ling
2025-04-07 10:08 (SW) Kerwin Chen Status assigned => closed
2025-04-07 10:08 (SW) Kerwin Chen Resolution open => fixed
2025-04-07 10:08 (SW) Kerwin Chen Note Added: 0017437
